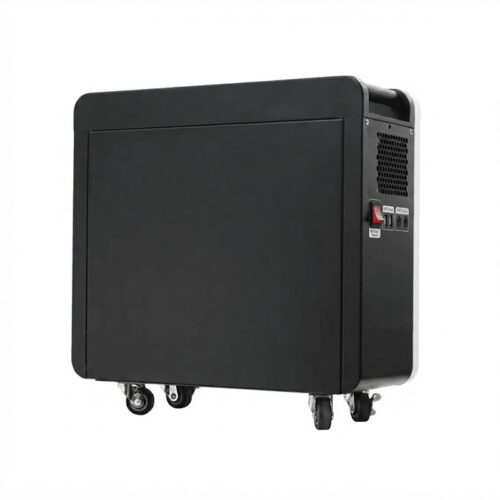

All in one battery

Nexener’s solar power systems offer reliable and sustainable energy solutions for residential and commercial properties. Our systems are designed to provide clean energy and reduce reliance on traditional power sources. With Nexener’s solar power systems, you can reduce your carbon footprint while enjoying the benefits of renewable energy.

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Share

Specifications

MAIN FEATURES

◆Excellent performance because of an MCU intelllgent control technology;
◆A wide range of applicable loads because of pure sine wave AC output;

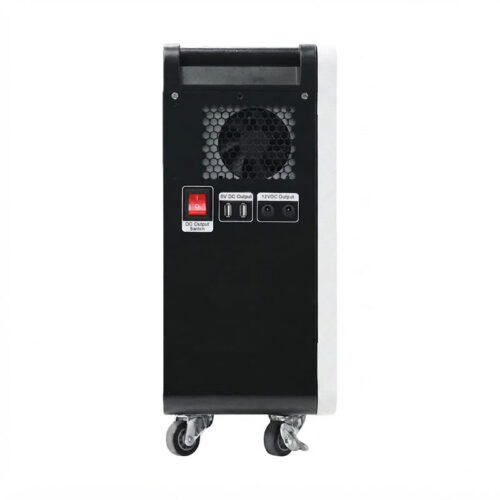

◆Convenient and practical 5VDC USB output port and 12VDC output port;
◆Solar array and battery connrnon-anodesystern input;
◆Charge by mains supply for flexible conflguration (optional function);
◆Overcharge protection and overdischarge protection for a longer battey life;
◆LCD and LEDS for visualization of operation status of the equipment
◆Overall automatic protection and alarms Including AC output over load protection, short circuit protection ,etc.



Model: ALNR-S600NR-S1200NR-S2200NR-S3500NR-S5000NR-S10000
InverterBattery Voltage12.8V25.6V51.2V
In-built Battery Specification50AH/12.8V50AH/25,6V100AH/25.6V100AH/51.2V100AH/51.2V200AH/51.2V
Rated Power600W1200W2200W3500W5000W10000W
Output Voltage110/120/220/230/240VAC220/230/240VAC
Output Frequency50/60Hz
Output WaveformPure Sine Wave
Input Voltage Range72-138/145-275VAC85-138/170-275VAC170-275VAC
Input Frequency45-65Hz
MPPT ChargeMaximum Photovoltaic Voltage≤150V
PV Input Range Voltage18-100V35-150V65-150V
Rated Charge Current30A60A
Maximum Power420Wp840Wp1600Wp3400Wp
Voltage Of Floating Charge14.2V28.4V56.8V
MPPT Efficiency≥97%
DC OutputVoltage Of High-voltage Protection17V34V68V
Voltage Of High Voltage Recovery15V30V60V
Voltage Of Low Voltage Recovery13V26V52V
Voltage Of Low Voltage Protection11.2V22.4V44.8 V
5VDC USB Output Port2 Units/MAX 2A
12VDC Output Port2 Units/MAX 2A
OtherHeat Dissipation/CoolingTemperature Control By Intelligent Exhaust Fan
Ambient Temperature For Operation0~40℃-20~50℃
Ambient Temperature For Storage-25~55°C
Operation/Storage Conditions0-90% (no condensation)
External Dimensions: DxWxH (mm)460*182*397485*202*406500*229*464577*350*644627*405*664780*447*724
Packing Dimensions: DxWxH (mm)527*267*470552*277*477570*310*535665*450*825715*505*845875*545*922
Net Weight (KG)132641.577112153
Gross Weight (KG)1527.54397137182
